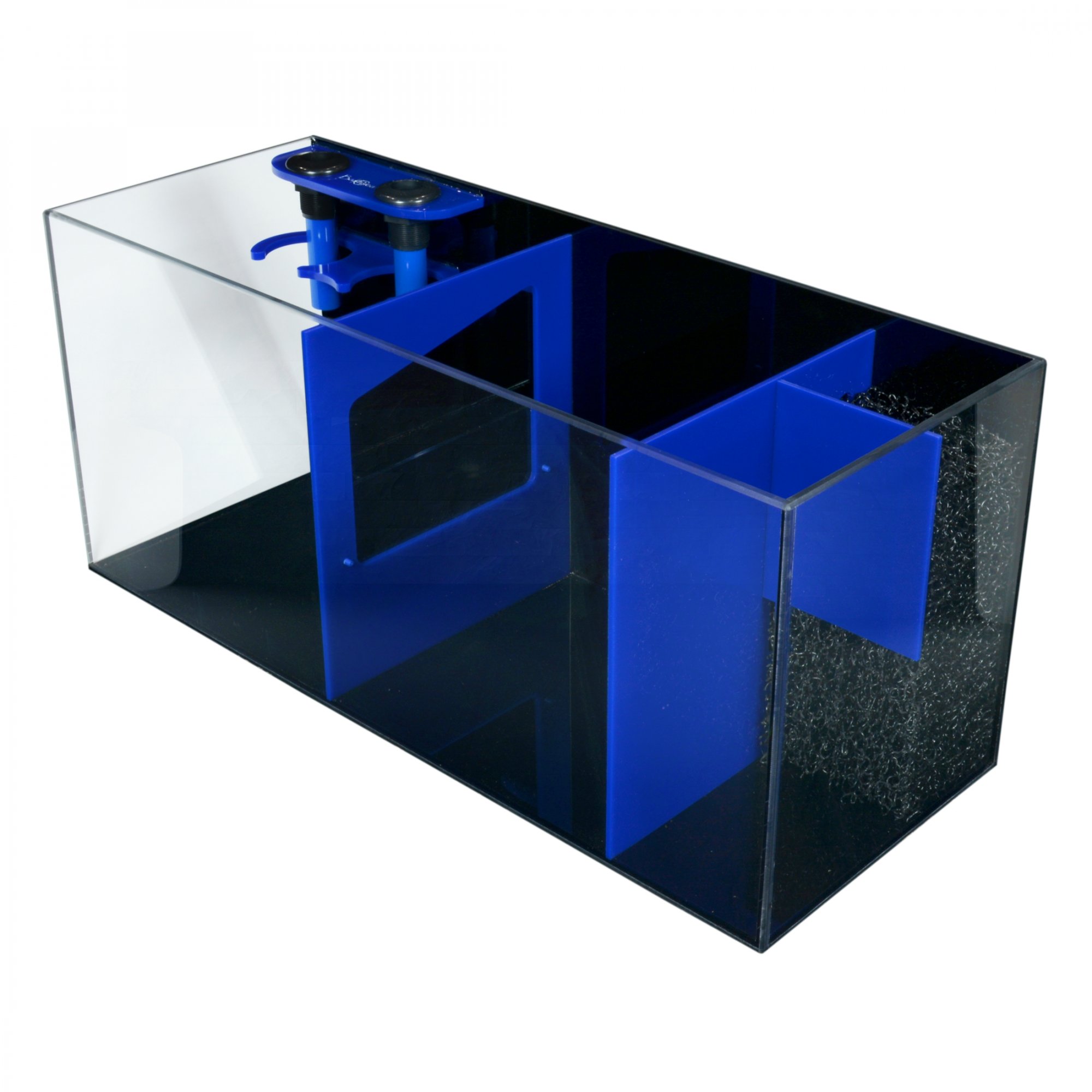

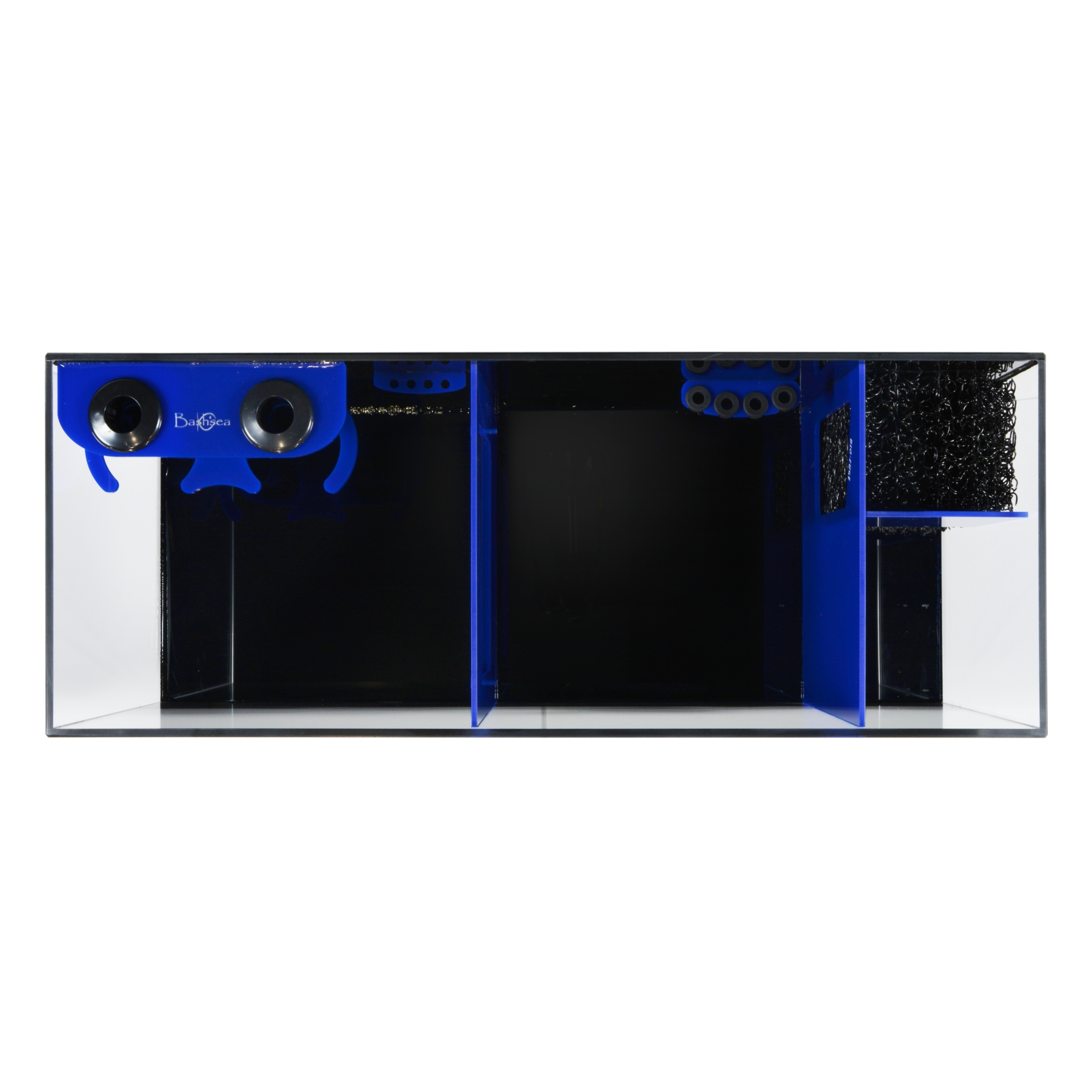

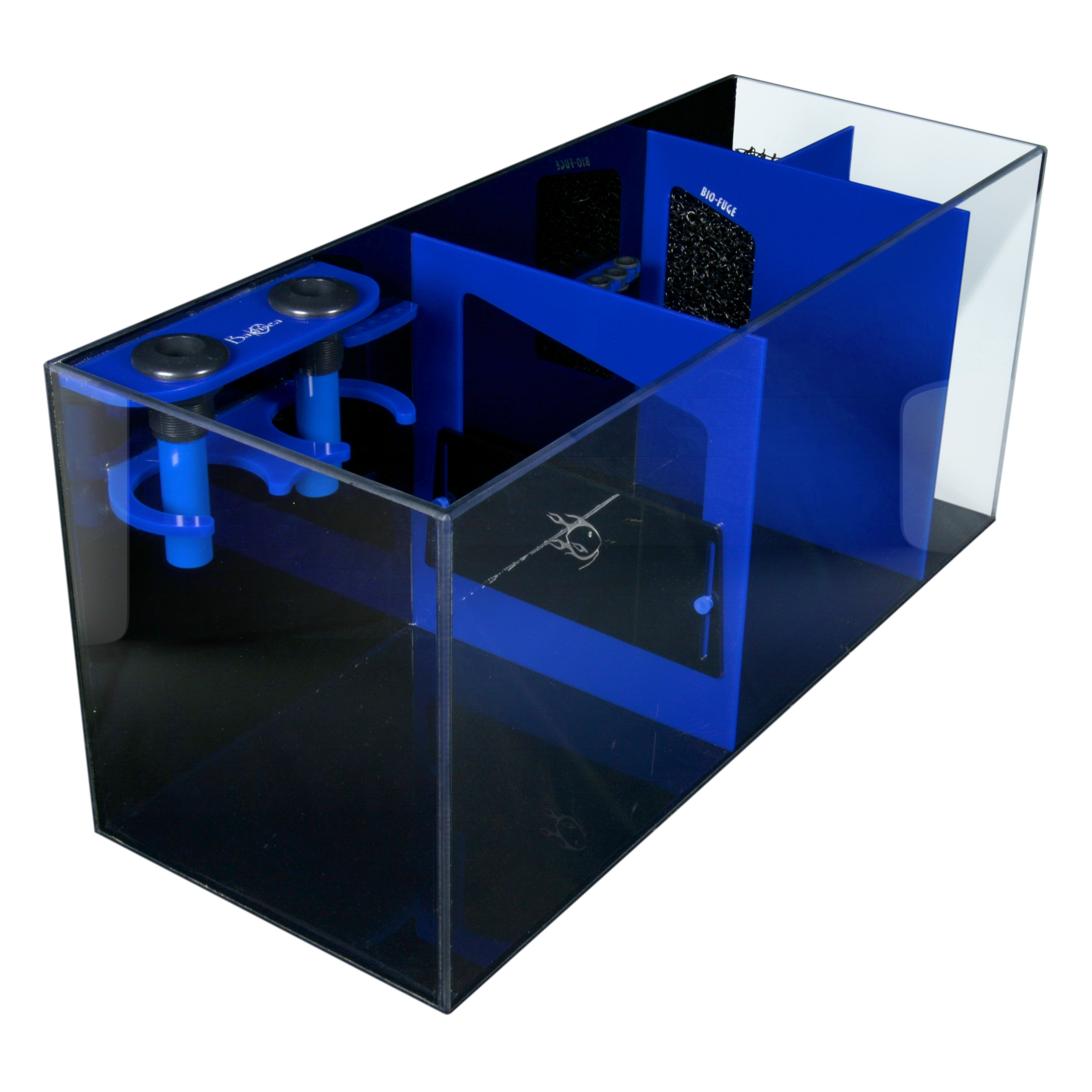

Bashsea Bio-Fuge 30x14x16

Bashea Bio-Fuge Sumps

Bashsea spares no expense and cuts no corners when it comes to their series of sumps. All Bashsea sumps are CNC and laser machined using a 2-step proprietorial welding process right here in the USA. Utilizing a combination of 1/4″ and 3/8″, 100% ultra grade, all-American cast acrylic, these sumps are built to last and will make you want to remove the cabinet doors to show how great your system looks.

A Simple rimless sump for any modern aquarium

It is the only fully-featured rimless sump on the market.

Bold look, pure quality, and strength are at their finest, and the rimless design provides full, unobstructed access for larger components.

The Bio-Fuge is versatile, letting you use it how you want to.

Built-in drains are no longer exclusive to rimmed sumps. Bashsea has engineered bulkhead drains that are fixed in the sump.

Bio-Fuge contains one adjustable gate, giving you complete water control.

Dosing inlets and Probe holders are included on models 36″ and up.

Commercial grade durability and craftsmanship.

It has a superior-quality build.

Welcome to First Class!
You don’t want to miss out on this excellent craftsmanship.  Adorned in Black & Blue, these Royal Bio Fuge Series will have you leaving your cabinet doors open to show it off.  Bashsea spares no expense and cuts no corners when it comes to their series of sumps.  All Bashsea sumps are CNC and laser machined using a 2-step proprietorial welding process right here in the USA. Utilizing a combination of 1/4″ and 3/8″, 100% ultra grade, all-American cast acrylic, these sumps are built to last and will make you want to remove the cabinet doors to show how jaw-dropping your system looks now.

Rimless Design
Make use of every inch inside this beast! Making this unique, rimless sump allows you to utilize this sump to its maximum potential for your system.

Non-Slip Grommet Probe Holders
No more over-tightening those screws down on your probes, either.  The Bashsea Bio Fuge 36″ and 48″ come with a four-probe holder with non-slip grommets.

Adjustable Slide & Matala
All sumps Skimmer Sections are fully adjustable with a built-in slide and include Matala baffling material before the pump area for added biological value, micro bubble management, and to keep algae and debris from getting into the pump area!

Filter Socks
All Bio-Fuge series sumps include Bashsea Nylon 200-micron socks.

24x10x14 3 sections for up to 75 gallons
30x14x14 3 sections up top 100 gallons
30x14x16 3 sections up to 125 gallons
36x14x16 3 sections up to 175 gallons
36x18x16 3 sections for aquariums up to 250 gallons
48x14x16 3 sections up to 300 gallons
48x18x16 3 sections up to 400 Gallons

24-10-14
Manufacturer Bashsea
Product Line Bio-Fuge Sumps
Product 24-10-14
Universal Product Code-
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 24 x 10 x 14 in 60.96 x 25.4 x 35.56 cm
Weight 17 lb 7.71 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 28 x 14 x 18 in 71.12 x 35.56 x 45.72 cm
Weight 19 lb 8.62 k g
Acrylic Thickness
Top-
Sides .25 in .64 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control-
Probe Holders-
Drains 1 @ diameter of 1 in (2.54 cm)
Socks 1 @ diameter of 4 in (10.16 cm)
Dosing Inputs-
Sump Section 1
Dimensions (L x W) 10.5 x 9.5 in 26.67 x 24.13 cm
Adjustable Gate Yes
Min Water Height 4 in 10.16 cm
Max Water Height 8 in 20.32 cm
Sump Section 2
Dimensions (L x W) 7.5 x 9.5 in 19.05 x 24.13 cm
Adjustable Gate No
Min Water Height-
Max Water Height-
Sump Section 3
Dimensions (L x W) 5 x 5 in 12.7 x 12.7 cm
Adjustable Gate No
Min Water Height-
Max Water Height-

30-10-14
Manufacturer Bashsea
Product Line Bio-Fuge Sumps
Product 30-10-14
Universal Product Code-
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 30 x 10 x 14 in 76.2 x 25.4 x 35.56 cm
Weight 19 lb 8.62 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 34 x 14 x 18 in 86.36 x 35.56 x 45.72 cm
Weight 22 lb 9.98 k g
Acrylic Thickness
Top-
Sides .25 in .64 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control-
Probe Holders-
Drains 1 @ diameter of 1 in (2.54 cm)
Socks 1 @ diameter of 4 in (10.16 cm)
Dosing Inputs-
Sump Section 1
Dimensions (L x W) 13 x 9.5 in 33.02 x 24.13 cm
Adjustable Gate Yes
Min Water Height 4 in 10.16 cm
Max Water Height 8 in 20.32 cm
Sump Section 2
Dimensions (L x W) 11 x 9.5 in 27.94 x 24.13 cm
Adjustable Gate No
Min Water Height-
Max Water Height-
Sump Section 3
Dimensions (L x W) 5 x 5 in 12.7 x 12.7 cm
Adjustable Gate No
Min Water Height-
Max Water Height-

30-14-16
Manufacturer Bashsea
Product Line Bio-Fuge Sumps
Product 30-14-16
Universal Product Code-
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 30 x 14 x 16 in 76.2 x 35.56 x 40.64 cm
Weight 29 lb 13.15 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 34 x 18 x 20 in 86.36 x 45.72 x 50.8 cm
Weight 33 lb 14.97 k g
Acrylic Thickness
Top-
Sides .25 in .64 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control-
Probe Holders-
Drains 1 @ diameter of 1 in (2.54 cm)
Socks 1 @ diameter of 4 in (10.16 cm)
Dosing Inputs-
Sump Section 1
Dimensions (L x W) 13 x 13.5 in 33.02 x 34.29 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 10 x 13.5 in 25.4 x 34.29 cm
Adjustable Gate No
Min Water Height-
Max Water Height-
Sump Section 3
Dimensions (L x W) 8 x 6.125 in 20.32 x 15.56 cm
Adjustable Gate No
Min Water Height-
Max Water Height-

36-14-16
Manufacturer Bashsea
Product Line Bio-Fuge Sumps
Product 36-14-16
Universal Product Code-
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 36 x 14 x 16 in 91.44 x 35.56 x 40.64 cm
Weight 40 lb 18.14 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 40 x 18 x 20 in 101.6 x 45.72 x 50.8 cm
Weight 45 lb 20.41 k g
Acrylic Thickness
Top-
Sides .375 in .95 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control-
Probe Holders 1
Drains 2 @ diameter of 1 in (2.54 cm)
Socks 2 @ diameter of 4 in (10.16 cm)
Dosing Inputs 1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W) 15 x 13.25 in 38.1 x 33.66 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 14 x 13.25 in 35.56 x 33.66 cm
Adjustable Gate No
Min Water Height-
Max Water Height-
Sump Section 3
Dimensions (L x W) 8 x 6.125 in 20.32 x 15.56 cm
Adjustable Gate No
Min Water Height-
Max Water Height-

36-18-16
Manufacturer Bashsea
Product Line Bio-Fuge Sumps
Product 36-18-16
Universal Product Code-
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 36 x 18 x 16 in 91.44 x 45.72 x 40.64 cm
Weight 46 lb 20.87 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 40 x 22 x 20 in 101.6 x 55.88 x 50.8 cm
Weight 52 lb 23.59 k g
Acrylic Thickness
Top-
Sides .375 in .95 cm
Baffles .375 in .95 cm
Bottom .25 in .64 cm
Properties
Cord Control-
Probe Holders 1
Drains 2 @ diameter of 1 in (2.54 cm)
Socks 2 @ diameter of 4 in (10.16 cm)
Dosing Inputs 1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W) 15 x 17.25 in 38.1 x 43.82 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 13 x 17.25 in 33.02 x 43.82 cm
Adjustable Gate No
Min Water Height-
Max Water Height-
Sump Section 3
Dimensions (L x W) 10 x 7 in 25.4 x 17.78 cm
Adjustable Gate No
Min Water Height-
Max Water Height-

48-14-16
Manufacturer Bashsea
Product Line Bio-Fuge Sumps
Product 48-14-16
Universal Product Code-
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 48 x 14 x 16 in 121.92 x 35.56 x 40.64 cm
Weight 48 lb 21.77 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 52 x 18 x 20 in 132.08 x 45.72 x 50.8 cm
Weight 55 lb 24.95 k g
Acrylic Thickness
Top-
Sides .375 in .95 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control-
Probe Holders 1
Drains 2 @ diameter of 1 in (2.54 cm)
Socks 2 @ diameter of 4 in (10.16 cm)
Dosing Inputs 1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W) 20 x 13.25 in 50.8 x 33.66 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 20.5 x 13.25 in 52.07 x 33.66 cm
Adjustable Gate No
Min Water Height-
Max Water Height-
Sump Section 3
Dimensions (L x W) 8 x 6.125 in 20.32 x 15.56 cm
Adjustable Gate No
Min Water Height-
Max Water Height-

48-18-16
Manufacturer Bashsea
Product Line Bio-Fuge Sumps
Product 48-18-16
Universal Product Code-
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 48 x 18 x 16 in 121.92 x 45.72 x 40.64 cm
Weight 52 lb 23.59 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 52 x 22 x 20 in 132.08 x 55.88 x 50.8 cm
Weight 60 lb 27.22 k g
Acrylic Thickness
Top-
Sides .375 in .95 cm
Baffles .375 in .95 cm
Bottom .25 in .64 cm
Properties
Cord Control-
Probe Holders 1
Drains 2 @ diameter of 1 in (2.54 cm)
Socks 2 @ diameter of 4 in (10.16 cm)
Dosing Inputs 1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W) 20 x 17.25 in 50.8 x 43.82 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 19 x 17.25 in 48.26 x 43.82 cm
Adjustable Gate No
Min Water Height-
Max Water Height-
Sump Section 3
Dimensions (L x W) 10 x 7 in 25.4 x 17.78 cm
Adjustable Gate No
Min Water Height-
Max Water Height-
