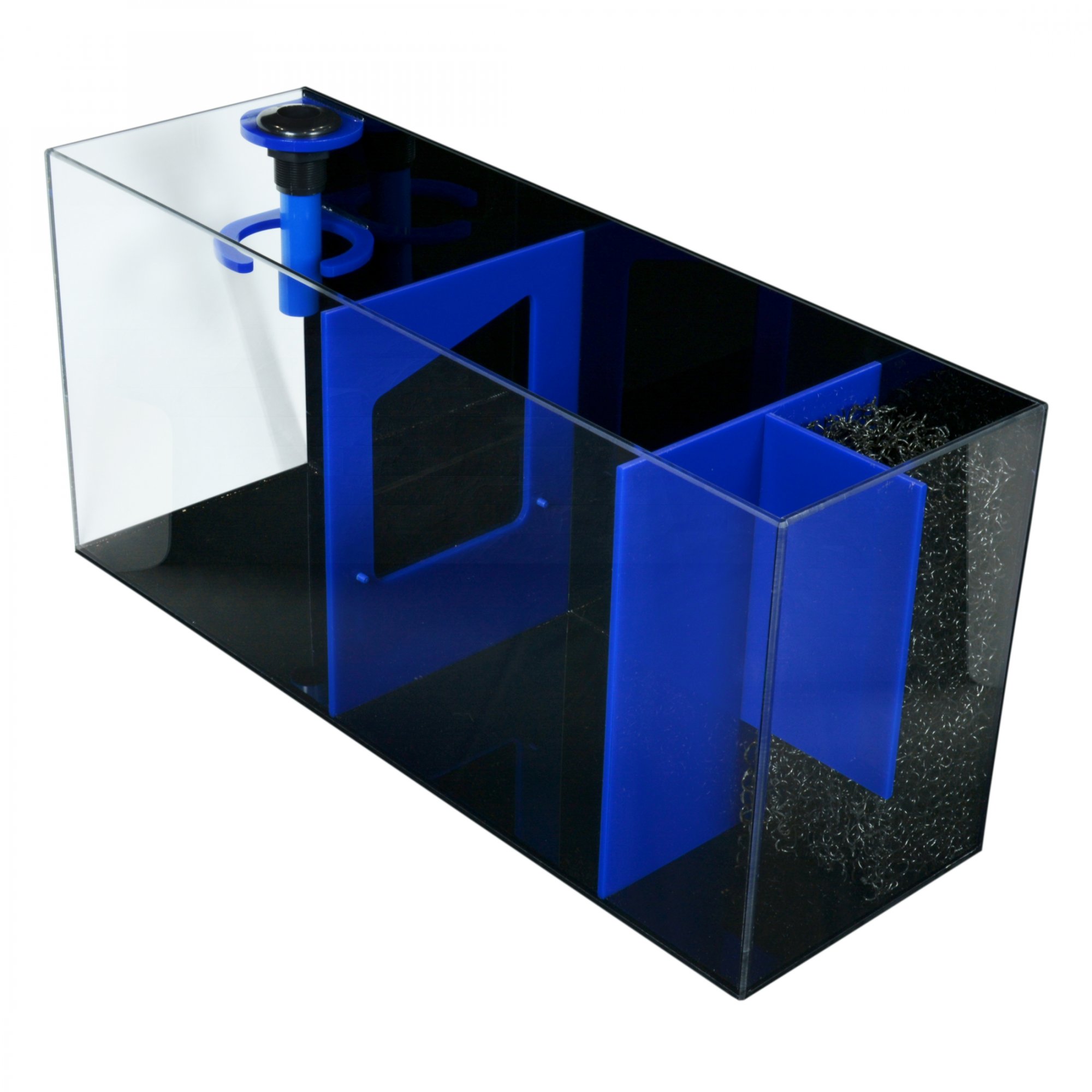

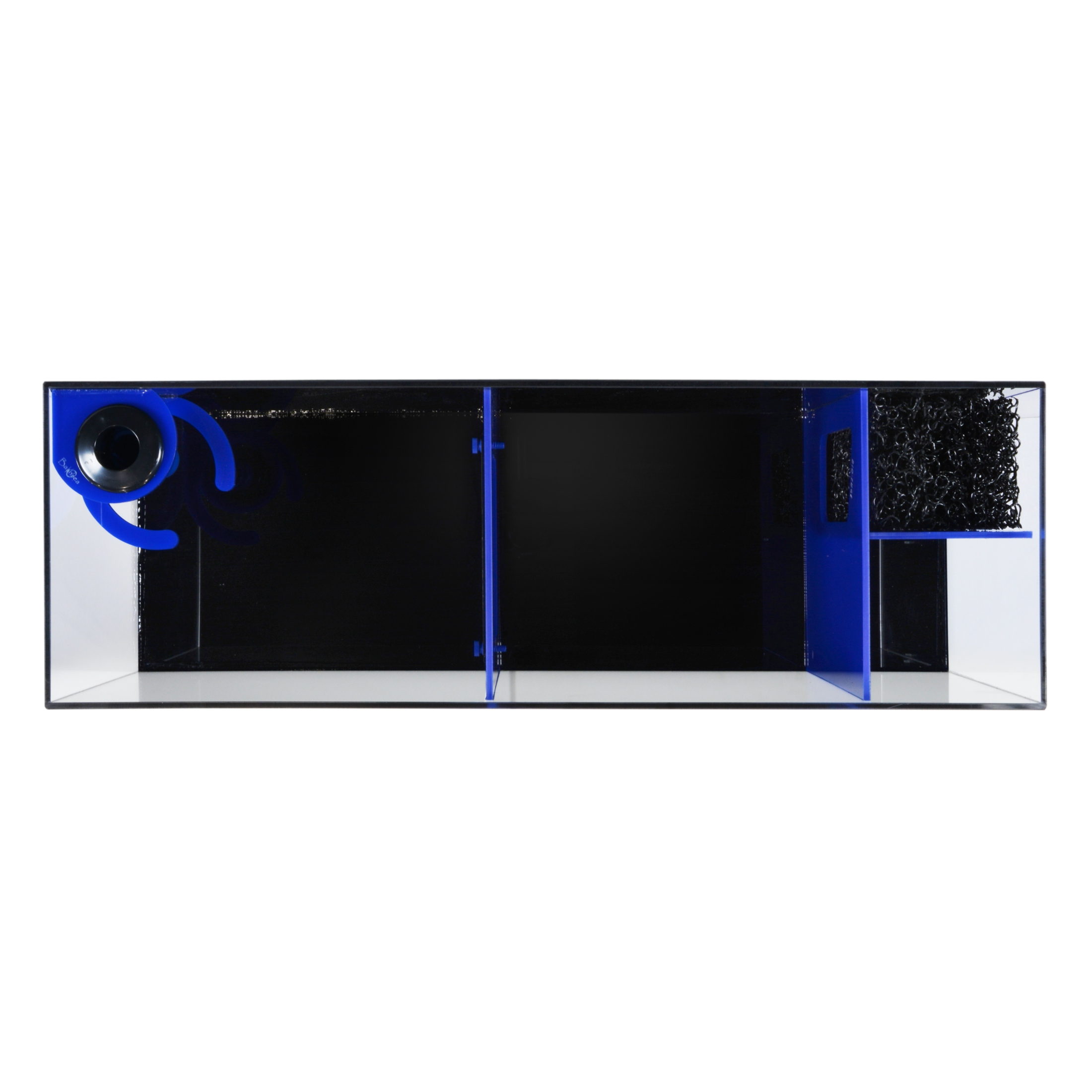

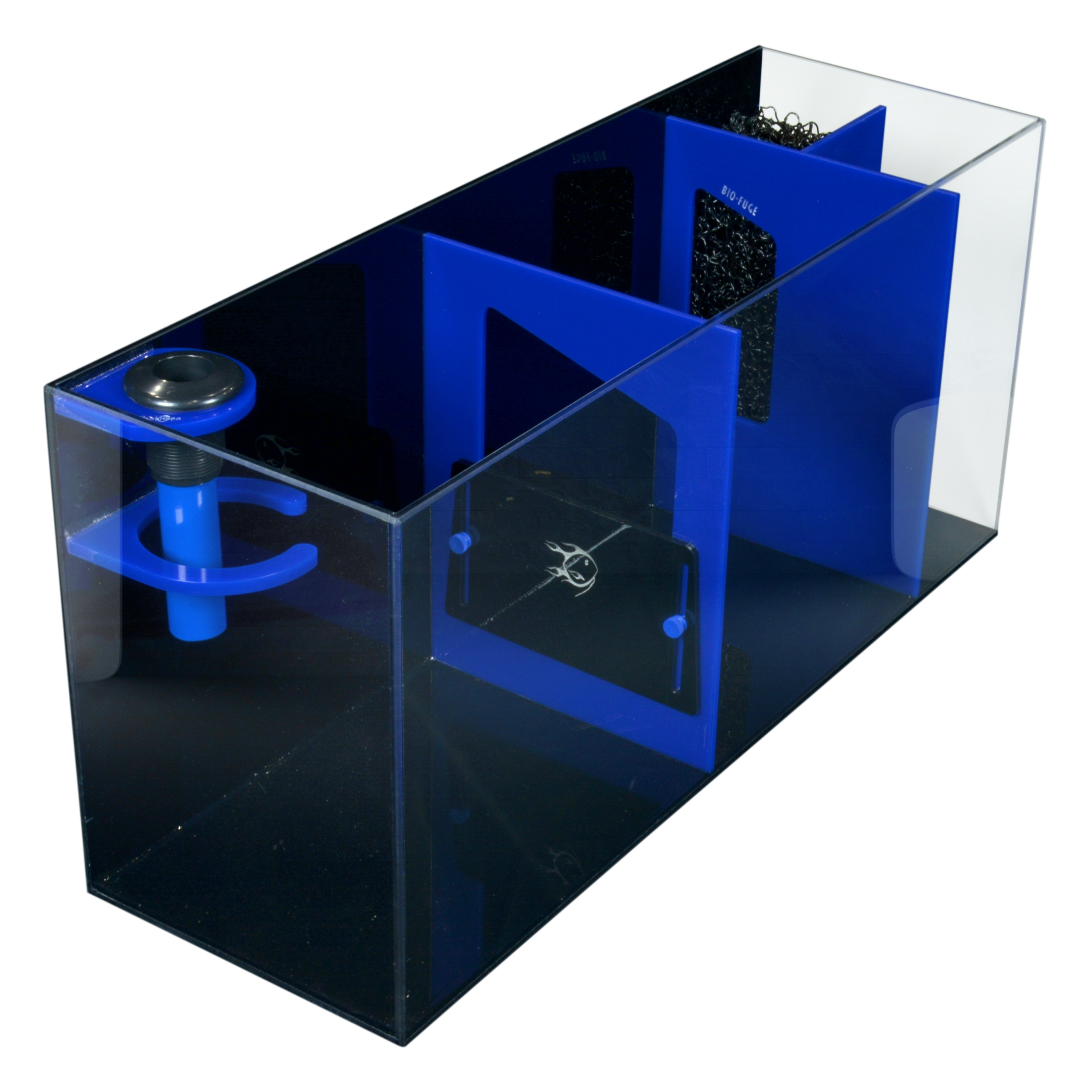

Bashsea BioFuge 30x10x14
$349.00
Free shipping for all orders over $50!*
Details
Bashea BioFuge Sumps
Bashsea spares no expense and cuts no corners when it comes to their series of sumps. All Bashsea sumps are CNC and laser machined using a 2step proprietorial welding process right here in the USA. Utilizing a combination of 1/4″ and 3/8″, 100% ultra grade, allAmerican cast acrylic, these sumps are built to last and will make you want to remove the cabinet doors to show how great your system looks.
A Simple rimless sump for any modern aquarium
It is the only fullyfeatured rimless sump on the market.
Bold look, pure quality, and strength are at their finest, and the rimless design provides full, unobstructed access for larger components.
The BioFuge is versatile, letting you use it how you want to.
Builtin drains are no longer exclusive to rimmed sumps. Bashsea has engineered bulkhead drains that are fixed in the sump.
BioFuge contains one adjustable gate, giving you complete water control.
Dosing inlets and Probe holders are included on models 36″ and up.
Commercial grade durability and craftsmanship.
It has a superiorquality build.
Welcome to First Class!Â Â
You don’t want to miss out on this excellent craftsmanship. Â Adorned in Black & Blue, these Royal Bio Fuge Series will have you leaving your cabinet doors open to show it off. Â Bashsea spares no expense and cuts no corners when it comes to their series of sumps. Â All Bashsea sumps are CNC and laser machined using a 2step proprietorial welding process right here in the USA. Utilizing a combination of 1/4″ and 3/8″, 100% ultra grade, allAmerican cast acrylic, these sumps are built to last andÂ will make you want to remove the cabinet doors to show how jawdropping your system looks now. Â Â
Rimless Design
Make use of every inch inside this beast! Making this unique, rimless sump allows you to utilize this sump to its maximum potential for your system.
NonSlip Grommet Probe Holders
No more overtightening those screws down on your probes, either. Â The Bashsea Bio Fuge 36″ and 48″ come with a fourprobe holder with nonslip grommets.
Adjustable Slide & MatalaÂ
All sumps Skimmer Sections are fully adjustable with a builtin slide and include Matala baffling material before the pump area for added biological value, micro bubble management, and to keep algae and debris from getting into the pump area!
Filter Socks
All BioFuge series sumps include Bashsea Nylon 200micron socks.
24x10x14 3 sections for up to 75 gallons
30x14x14 3 sections up top 100 gallons
30x14x16 3 sections up to 125 gallons
36x14x16 3 sections up to 175 gallons
36x18x16 3 sections for aquariums up to 250 gallons
48x14x16 3 sections up to 300 gallons
48x18x16 3 sections up to 400 Gallons
241014
Manufacturer Bashsea
Product Line BioFuge Sumps
Product 241014
Universal Product Code
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 24 x 10 x 14 in 60.96 x 25.4 x 35.56 cm
Weight 17 lb 7.71 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 28 x 14 x 18 in 71.12 x 35.56 x 45.72 cm
Weight 19 lb 8.62 k g
Acrylic Thickness
Top
Sides .25 in .64 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control
Probe Holders
Drains 1 @ diameter of 1 in (2.54 cm)
Socks 1 @ diameter of 4 in (10.16 cm)
Dosing Inputs
Sump Section 1
Dimensions (L x W) 10.5 x 9.5 in 26.67 x 24.13 cm
Adjustable Gate Yes
Min Water Height 4 in 10.16 cm
Max Water Height 8 in 20.32 cm
Sump Section 2
Dimensions (L x W) 7.5 x 9.5 in 19.05 x 24.13 cm
Adjustable Gate No
Min Water Height
Max Water Height
Sump Section 3
Dimensions (L x W) 5 x 5 in 12.7 x 12.7 cm
Adjustable Gate No
Min Water Height
Max Water Height
301014
Manufacturer Bashsea
Product Line BioFuge Sumps
Product 301014
Universal Product Code
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 30 x 10 x 14 in 76.2 x 25.4 x 35.56 cm
Weight 19 lb 8.62 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 34 x 14 x 18 in 86.36 x 35.56 x 45.72 cm
Weight 22 lb 9.98 k g
Acrylic Thickness
Top
Sides .25 in .64 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control
Probe Holders
Drains 1 @ diameter of 1 in (2.54 cm)
Socks 1 @ diameter of 4 in (10.16 cm)
Dosing Inputs
Sump Section 1
Dimensions (L x W) 13 x 9.5 in 33.02 x 24.13 cm
Adjustable Gate Yes
Min Water Height 4 in 10.16 cm
Max Water Height 8 in 20.32 cm
Sump Section 2
Dimensions (L x W) 11 x 9.5 in 27.94 x 24.13 cm
Adjustable Gate No
Min Water Height
Max Water Height
Sump Section 3
Dimensions (L x W) 5 x 5 in 12.7 x 12.7 cm
Adjustable Gate No
Min Water Height
Max Water Height
301416
Manufacturer Bashsea
Product Line BioFuge Sumps
Product 301416
Universal Product Code
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 30 x 14 x 16 in 76.2 x 35.56 x 40.64 cm
Weight 29 lb 13.15 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 34 x 18 x 20 in 86.36 x 45.72 x 50.8 cm
Weight 33 lb 14.97 k g
Acrylic Thickness
Top
Sides .25 in .64 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control
Probe Holders
Drains 1 @ diameter of 1 in (2.54 cm)
Socks 1 @ diameter of 4 in (10.16 cm)
Dosing Inputs
Sump Section 1
Dimensions (L x W) 13 x 13.5 in 33.02 x 34.29 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 10 x 13.5 in 25.4 x 34.29 cm
Adjustable Gate No
Min Water Height
Max Water Height
Sump Section 3
Dimensions (L x W) 8 x 6.125 in 20.32 x 15.56 cm
Adjustable Gate No
Min Water Height
Max Water Height
361416
Manufacturer Bashsea
Product Line BioFuge Sumps
Product 361416
Universal Product Code
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 36 x 14 x 16 in 91.44 x 35.56 x 40.64 cm
Weight 40 lb 18.14 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 40 x 18 x 20 in 101.6 x 45.72 x 50.8 cm
Weight 45 lb 20.41 k g
Acrylic Thickness
Top
Sides .375 in .95 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control
Probe Holders 1
Drains 2 @ diameter of 1 in (2.54 cm)
Socks 2 @ diameter of 4 in (10.16 cm)
Dosing Inputs 1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W) 15 x 13.25 in 38.1 x 33.66 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 14 x 13.25 in 35.56 x 33.66 cm
Adjustable Gate No
Min Water Height
Max Water Height
Sump Section 3
Dimensions (L x W) 8 x 6.125 in 20.32 x 15.56 cm
Adjustable Gate No
Min Water Height
Max Water Height
361816
Manufacturer Bashsea
Product Line BioFuge Sumps
Product 361816
Universal Product Code
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 36 x 18 x 16 in 91.44 x 45.72 x 40.64 cm
Weight 46 lb 20.87 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 40 x 22 x 20 in 101.6 x 55.88 x 50.8 cm
Weight 52 lb 23.59 k g
Acrylic Thickness
Top
Sides .375 in .95 cm
Baffles .375 in .95 cm
Bottom .25 in .64 cm
Properties
Cord Control
Probe Holders 1
Drains 2 @ diameter of 1 in (2.54 cm)
Socks 2 @ diameter of 4 in (10.16 cm)
Dosing Inputs 1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W) 15 x 17.25 in 38.1 x 43.82 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 13 x 17.25 in 33.02 x 43.82 cm
Adjustable Gate No
Min Water Height
Max Water Height
Sump Section 3
Dimensions (L x W) 10 x 7 in 25.4 x 17.78 cm
Adjustable Gate No
Min Water Height
Max Water Height
481416
Manufacturer Bashsea
Product Line BioFuge Sumps
Product 481416
Universal Product Code
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 48 x 14 x 16 in 121.92 x 35.56 x 40.64 cm
Weight 48 lb 21.77 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 52 x 18 x 20 in 132.08 x 45.72 x 50.8 cm
Weight 55 lb 24.95 k g
Acrylic Thickness
Top
Sides .375 in .95 cm
Baffles .25 in .64 cm
Bottom .25 in .64 cm
Properties
Cord Control
Probe Holders 1
Drains 2 @ diameter of 1 in (2.54 cm)
Socks 2 @ diameter of 4 in (10.16 cm)
Dosing Inputs 1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W) 20 x 13.25 in 50.8 x 33.66 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 20.5 x 13.25 in 52.07 x 33.66 cm
Adjustable Gate No
Min Water Height
Max Water Height
Sump Section 3
Dimensions (L x W) 8 x 6.125 in 20.32 x 15.56 cm
Adjustable Gate No
Min Water Height
Max Water Height
481816
Manufacturer Bashsea
Product Line BioFuge Sumps
Product 481816
Universal Product Code
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H) 48 x 18 x 16 in 121.92 x 45.72 x 40.64 cm
Weight 52 lb 23.59 k g
Physical Properties (with packaging)
Dimensions (L x W x H) 52 x 22 x 20 in 132.08 x 55.88 x 50.8 cm
Weight 60 lb 27.22 k g
Acrylic Thickness
Top
Sides .375 in .95 cm
Baffles .375 in .95 cm
Bottom .25 in .64 cm
Properties
Cord Control
Probe Holders 1
Drains 2 @ diameter of 1 in (2.54 cm)
Socks 2 @ diameter of 4 in (10.16 cm)
Dosing Inputs 1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W) 20 x 17.25 in 50.8 x 43.82 cm
Adjustable Gate Yes
Min Water Height 5 in 12.7 cm
Max Water Height 9 in 22.86 cm
Sump Section 2
Dimensions (L x W) 19 x 17.25 in 48.26 x 43.82 cm
Adjustable Gate No
Min Water Height
Max Water Height
Sump Section 3
Dimensions (L x W) 10 x 7 in 25.4 x 17.78 cm
Adjustable Gate No
Min Water Height
Max Water Height
Â
BioFuge Sumps
241014

301014

301416

361416

361816

481416

481816


Identity
Manufacturer  Bashsea  Bashsea  Bashsea  Bashsea  Bashsea  Bashsea  Bashsea
Product Line  BioFuge Sumps  BioFuge Sumps  BioFuge Sumps  BioFuge Sumps  BioFuge Sumps  BioFuge Sumps  BioFuge Sumps
Product  241014  301014  301416  361416  361816  481416  481816
Universal Product Code  –  –  –  –  –  –  –
Available Styles  Blue Black  Blue Black  Blue Black  Blue Black  Blue Black  Blue Black  Blue Black
Physical Properties
Dimensions (L x W x H)
24 x 10 x 14 in
60.96 x 25.4 x 35.56 cm

30 x 10 x 14 in
76.2 x 25.4 x 35.56 cm

30 x 14 x 16 in
76.2 x 35.56 x 40.64 cm

36 x 14 x 16 in
91.44 x 35.56 x 40.64 cm

36 x 18 x 16 in
91.44 x 45.72 x 40.64 cm

48 x 14 x 16 in
121.92 x 35.56 x 40.64 cm

48 x 18 x 16 in
121.92 x 45.72 x 40.64 cm

Weight
17 lb
7.71 kg

19 lb
8.62 kg

29 lb
13.15 kg

40 lb
18.14 kg

46 lb
20.87 kg

48 lb
21.77 kg

52 lb
23.59 kg

Physical Properties (with packaging)
Dimensions (L x W x H)
28 x 14 x 18 in
71.12 x 35.56 x 45.72 cm

34 x 14 x 18 in
86.36 x 35.56 x 45.72 cm

34 x 18 x 20 in
86.36 x 45.72 x 50.8 cm

40 x 18 x 20 in
101.6 x 45.72 x 50.8 cm

40 x 22 x 20 in
101.6 x 55.88 x 50.8 cm

52 x 18 x 20 in
132.08 x 45.72 x 50.8 cm

52 x 22 x 20 in
132.08 x 55.88 x 50.8 cm

Weight
19 lb
8.62 kg

22 lb
9.98 kg

33 lb
14.97 kg

45 lb
20.41 kg

52 lb
23.59 kg

55 lb
24.95 kg

60 lb
27.22 kg

Acrylic Thickness
Top  –  –  –  –  –  –  –
Sides
.25 in
.64 cm

.25 in
.64 cm

.25 in
.64 cm

.375 in
.95 cm

.375 in
.95 cm

.375 in
.95 cm

.375 in
.95 cm

Baffles
.25 in
.64 cm

.25 in
.64 cm

.25 in
.64 cm

.25 in
.64 cm

.375 in
.95 cm

.25 in
.64 cm

.375 in
.95 cm

Bottom
.25 in
.64 cm

.25 in
.64 cm

.25 in
.64 cm

.25 in
.64 cm

.25 in
.64 cm

.25 in
.64 cm

.25 in
.64 cm

Properties
Cord Control  –  –  –  –  –  –  –
Probe Holders  –  –  –  1  1  1  1
Drains
1 @ diameter of 1 in (2.54 cm)

1 @ diameter of 1 in (2.54 cm)

1 @ diameter of 1 in (2.54 cm)

2 @ diameter of 1 in (2.54 cm)

2 @ diameter of 1 in (2.54 cm)

2 @ diameter of 1 in (2.54 cm)

2 @ diameter of 1 in (2.54 cm)

Socks
1 @ diameter of 4 in (10.16 cm)

1 @ diameter of 4 in (10.16 cm)

1 @ diameter of 4 in (10.16 cm)

2 @ diameter of 4 in (10.16 cm)

2 @ diameter of 4 in (10.16 cm)

2 @ diameter of 4 in (10.16 cm)

2 @ diameter of 4 in (10.16 cm)

Dosing Inputs  –  –  –
1 group of 4 @ diameter of .3 in (.76 cm)

1 group of 4 @ diameter of .3 in (.76 cm)

1 group of 4 @ diameter of .3 in (.76 cm)

1 group of 4 @ diameter of .3 in (.76 cm)

Sump Section 1
Dimensions (L x W)
10.5 x 9.5 in
26.67 x 24.13 cm

13 x 9.5 in
33.02 x 24.13 cm

13 x 13.5 in
33.02 x 34.29 cm

15 x 13.25 in
38.1 x 33.66 cm

15 x 17.25 in
38.1 x 43.82 cm

20 x 13.25 in
50.8 x 33.66 cm

20 x 17.25 in
50.8 x 43.82 cm

Adjustable Gate  Yes  Yes  Yes  Yes  Yes  Yes  Yes
Min Water Height
4 in
10.16 cm

4 in
10.16 cm

5 in
12.7 cm

5 in
12.7 cm

5 in
12.7 cm

5 in
12.7 cm

5 in
12.7 cm

Max Water Height
8 in
20.32 cm

8 in
20.32 cm

9 in
22.86 cm

9 in
22.86 cm

9 in
22.86 cm

9 in
22.86 cm

9 in
22.86 cm

Sump Section 2
Dimensions (L x W)
7.5 x 9.5 in
19.05 x 24.13 cm

11 x 9.5 in
27.94 x 24.13 cm

10 x 13.5 in
25.4 x 34.29 cm

14 x 13.25 in
35.56 x 33.66 cm

13 x 17.25 in
33.02 x 43.82 cm

20.5 x 13.25 in
52.07 x 33.66 cm

19 x 17.25 in
48.26 x 43.82 cm

Adjustable Gate  No  No  No  No  No  No  No
Min Water Height  –  –  –  –  –  –  –
Max Water Height  –  –  –  –  –  –  –
Sump Section 3
Dimensions (L x W)
5 x 5 in
12.7 x 12.7 cm

5 x 5 in
12.7 x 12.7 cm

8 x 6.125 in
20.32 x 15.56 cm

8 x 6.125 in
20.32 x 15.56 cm

10 x 7 in
25.4 x 17.78 cm

8 x 6.125 in
20.32 x 15.56 cm

10 x 7 in
25.4 x 17.78 cm

Adjustable Gate  No  No  No  No  No  No  No
Min Water Height  –  –  –  –  –  –  –
Max Water Height  –  –  –  –  –  –  –
Reviews
There are no reviews yet.
